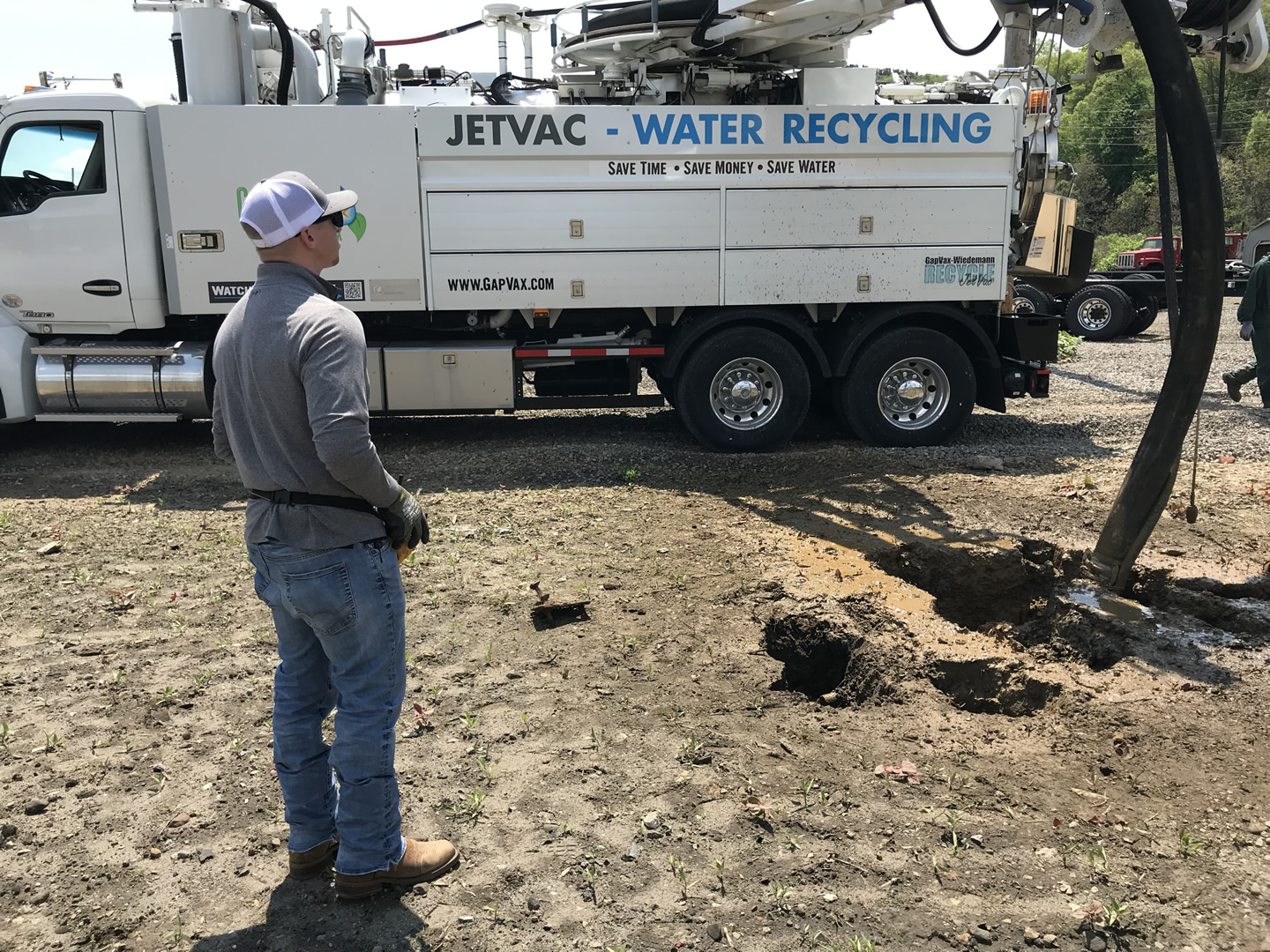

——————— GapVax/Wiedemann Water Recycle Truck ———————

RECYCLE

WATER RECYCLING JETVAC

Today's contractors and municipalities are especially conscious of the need to conserve both time and water. With the ever growing need to conserve our resources, GapVax partnered with Wiedemann, the inventors of sewer cleaning equipment water recycling technology, to bring a product that has been consistently refined over the last 40+ years to North America. Our recycle jetvac is the only recycling truck on the market that cleans the water instead of filtering it, allowing you to work without interuptions or breakdowns from grease, sand or clay. Our superior offloading system allows you to pressure off clean water back into the sewer through the vacuum tube, while controlling the whole operation through a wireless, operator-friendly belly pack. The vacuum and recycling system is self-cleaning and requires low maintenance.

Fully Automatic Water Recycling System
  • This greatly increases the productivity of the machine, no lost time due to filling the water tanks, no waste of potable water for the purpose of cleaning sewers, ability to clean sewer with high volume water flow thus further increasing productivity
  • The Wiedemann water recycling system has been in operation in various models of machines for longer than any other system on the market. The system has been independently tested, the results proved that the recycled water quality was of such a high quality that it would not cause any more wear to pumps etc. than if normal hydrant water was being used.
Combined Suction & High Pressure Hose Boom
  • Quick setting up times on the manholes – no wasted time trying to connect hoses and maneuver them into place even in difficult to reach places (behind walls etc), maximises production and profitability
  • Easy and safe for the operator – the easy and safe control of the hoses reduced the risks of the operator sustaining an injury
Computer Controlled System
  • Safeguards the machinery – prevents dry running of pumps – prevents pumps being engaged at high rpm etc, keep your service and maintenance costs to a minimum over the life of the machine
Two-Tank Configuration
  • This two-tank configuration has the advantages of increased truck stability, optimum load distribution and maximum tank volume on a shorter wheelbase than one-tank system.
Liquid Ring Pump
  • Compact size / lightweight construction – maximises space on the vehicle for storage and also more payload weight available due to the weight savings made on the pump – this allows a larger payload
  • Low power input relative to the capacity of the pump – very high efficiency – This means huge fuel savings during the whole life of the machine (many years of fuel cost savings)
  • Quiet operating sound levels of pump
Debris Tank Stainless steel, cylinder-shaped,
10.5 cubic yards
Water Tank Stainless steel, box-form around and under sludge tank
1500 Gallons
Emptying Method Pressurization and Dumping (stainless steel tank or half-pipe ensure complete emptying of tank)
Vacuum Pump Liquid Ring from 2400 CFM
High Pressure Pump 125 GPM
Suction Hose Reel Arranged horizontally on the debris tank, electro-hydraulically operated, 6" x 60'
High Pressure Hose Reel Mounted on boom, capacity for 590 feet of 1-1/4" hose
Small High Pressure Hose Reel Mounted on boom, capacity for 325 feet of 1/2" hose
Suction & High Pressure Boom The boom is electro-hydraulicallly controlled and can rotate 180 degrees around the rear of the vehicle and is telescopic by 4 feet. Allows for quick and easy setup at the manhole
Water Recycling System Continuous fully automatic water recycling system with independent water quality testing approval
Standard Equipment Electric pressure & speed control, pump room soundproofing, large equipment storage cabinets
Optional Equipment Various options and accessories are available
